Manufacturer:Alfa Laval
Item number: 9634001920
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:On request

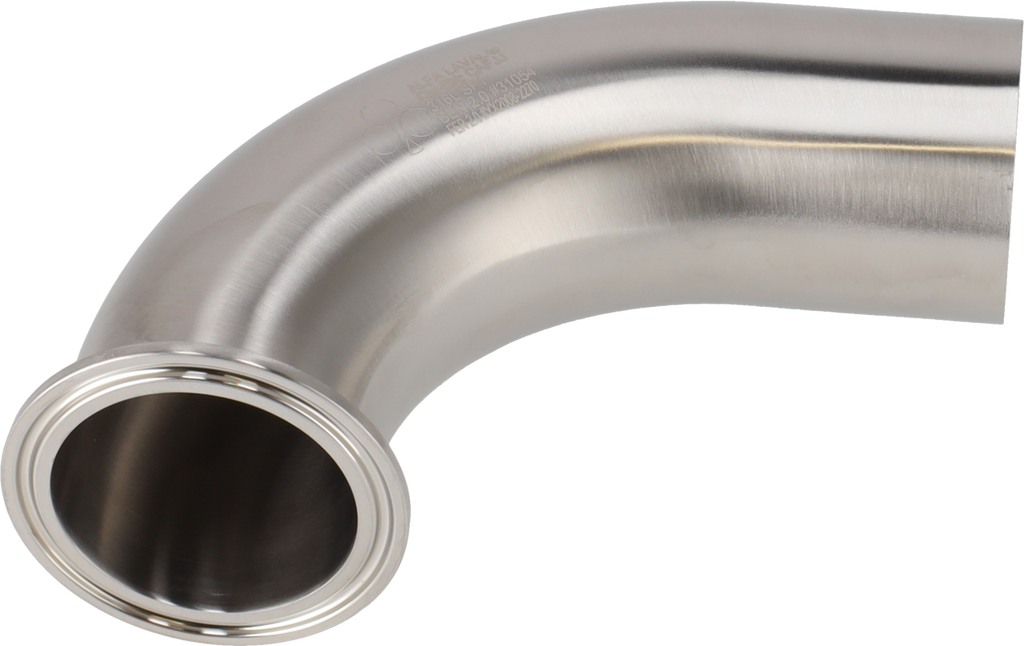

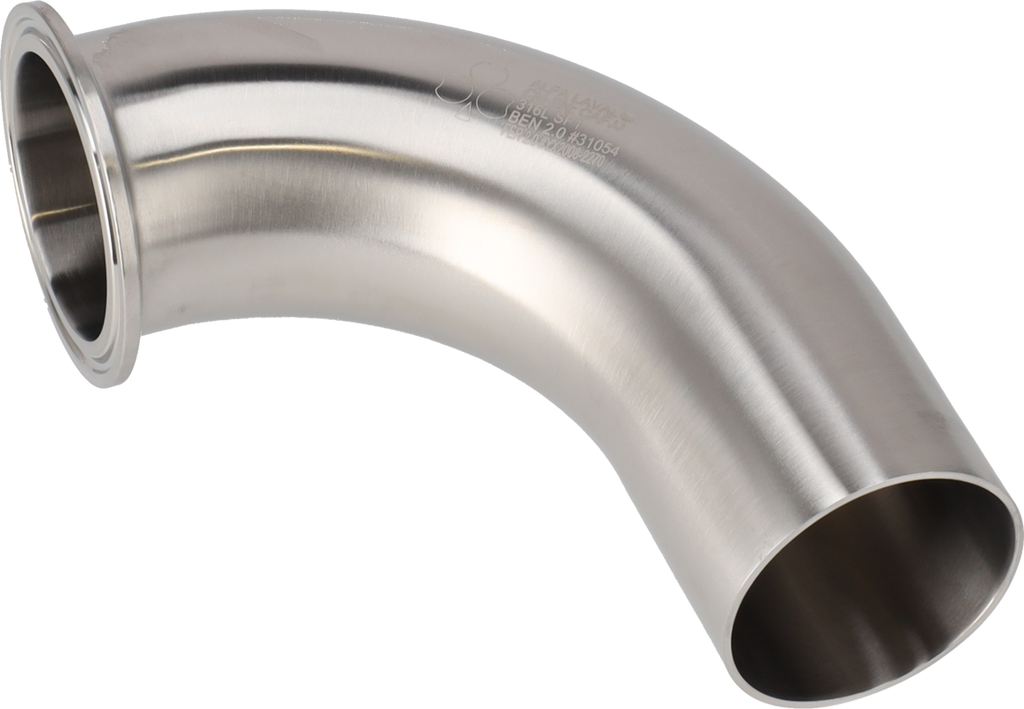

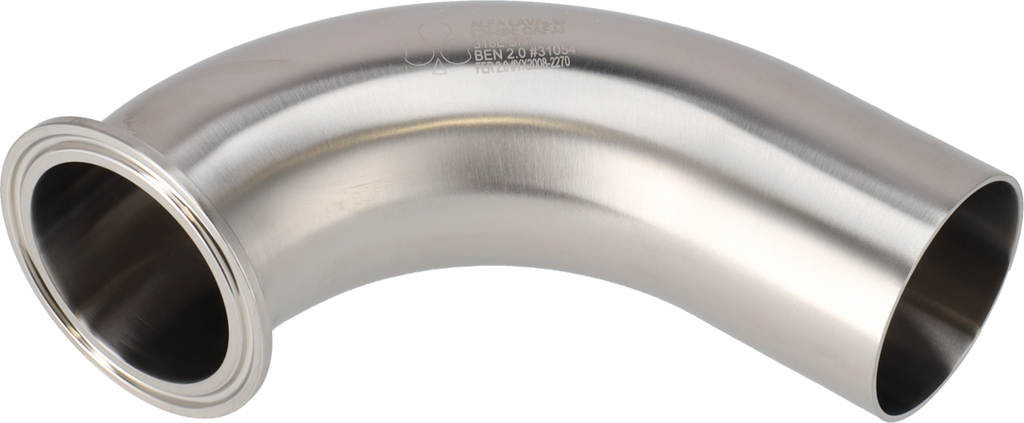

  • Type: Bends 90
  • Design: B2CMW
  • Standard: ASME BPE
  • Material: ASME BPE
  • Size: 0.75
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: TCxW
  • Item Weight: 0.09
  • Country of origin: China
Price:
Login to view price
A: 76.2
B: 41.3
C: 41.3
OD/ID x t: 19.05/15.75 x 1.65
OD1/ID1 x t1: 19.05/15.75 x 1.65
