B7IWWMS-1/2 X 1 1/2-316L-PL
B7IWWMS-1/2 X 1 1/2-316L-PL
Roll over image to zoom in Click on image to zoom
B7IWWMS-1/2 X 1 1/2-316L-PL
B7IWWMS-1/2 X 1 1/2-316L-PL

B7IWWMS-1/2 X 1 1/2-316L-PL

Manufacturer:Alfa Laval
Item number: 241737
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:On request
  • Type: Reducing Tees
  • Design: B7IWWMS
  • Standard: ASME BPE
  • Material: ASME BPE
  • Size: 0.5
  • Second Size: 1.5
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: WxWxTC
  • Item Weight: 0.378
  • Country of origin: United States
Price:
Login to view price

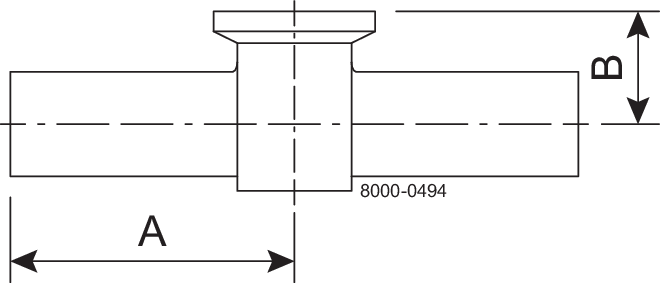

A: 63.5
B: 22.2
OD/ID x t: 12.70/9.40 x 1.65
OD1/ID1 x t1: 12.70/9.40 x 1.65
OD2/ID2 x t2: 38.10/34.80 x 1.65
