Manufacturer:Alfa Laval
Item number: 9634043024
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time

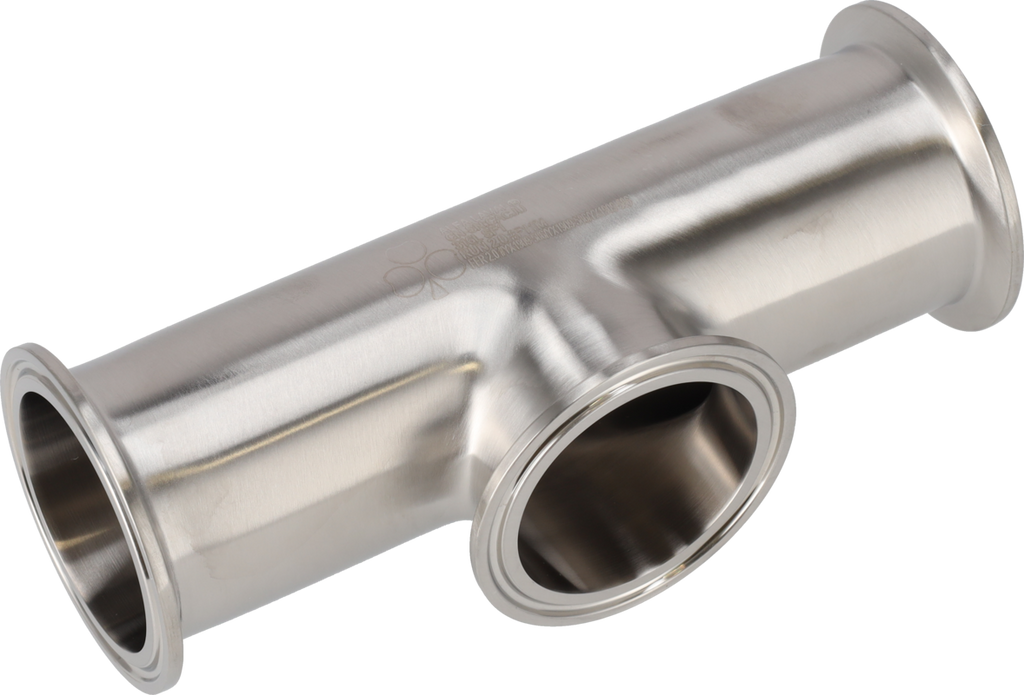

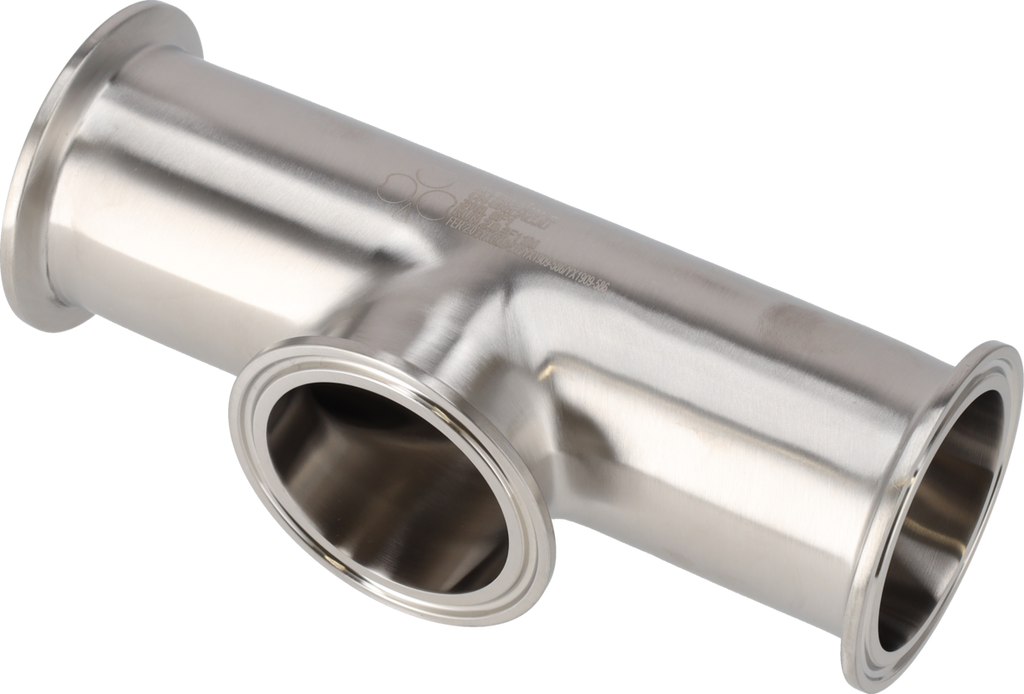

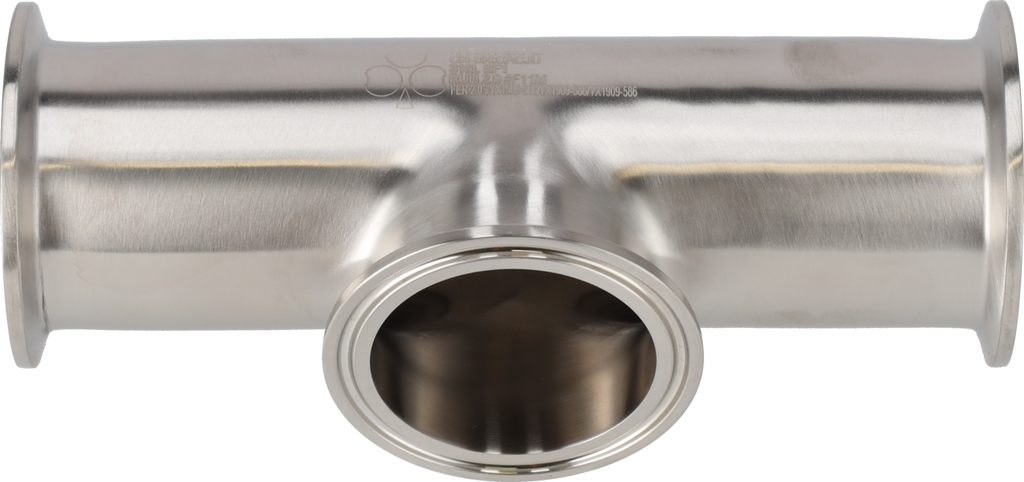

  • Type: Tee
  • Design: B7MPS
  • Standard: ASME BPE
  • Material: ASME BPE
  • Size: 4
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Clamp ends
  • Country of origin: United States
Price:
Login to view price

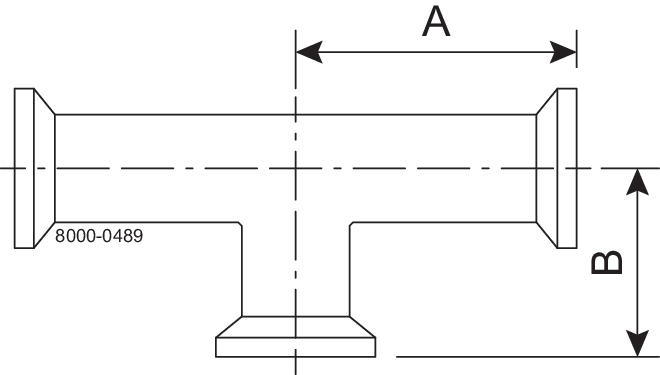

A: 120.7
B: 69.8
OD/ID x t: 101.60/97.38 x 2.11
OD1/ID1 x t1: 101.60/97.38 x 2.11
