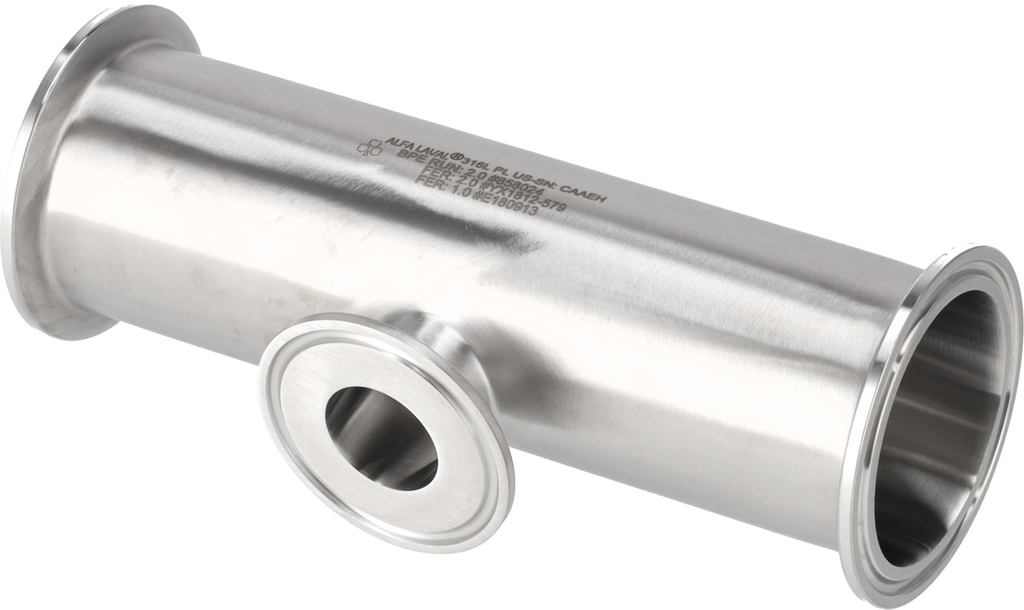

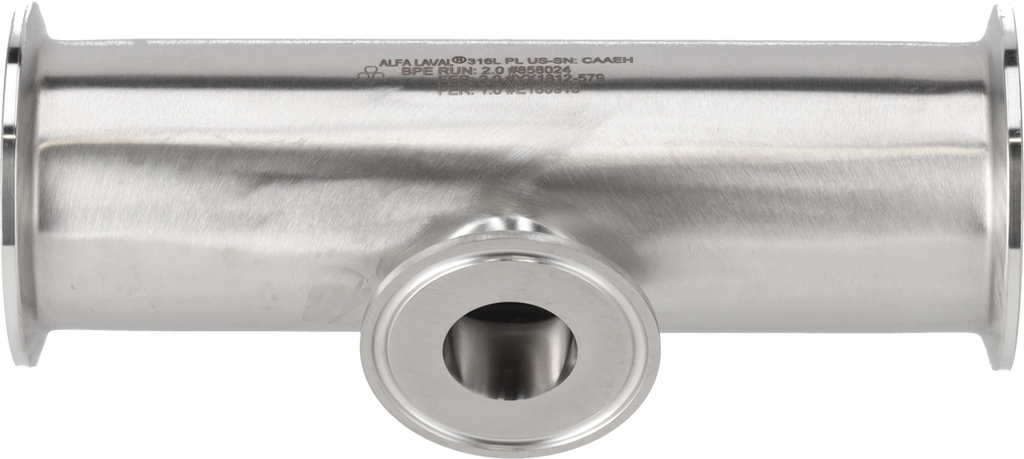

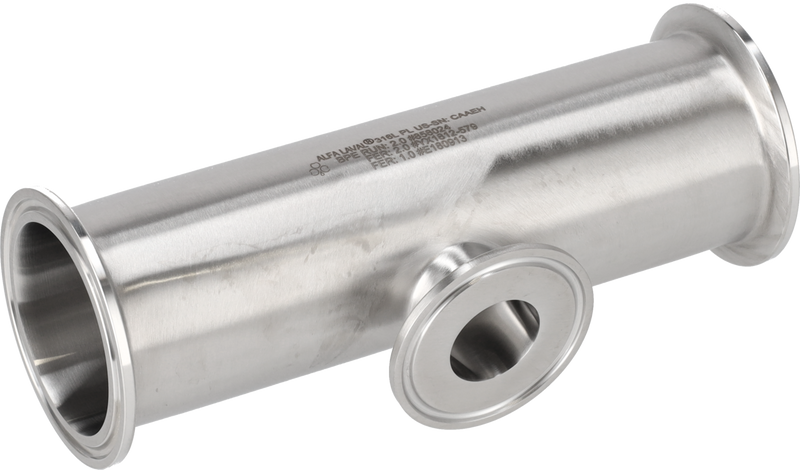

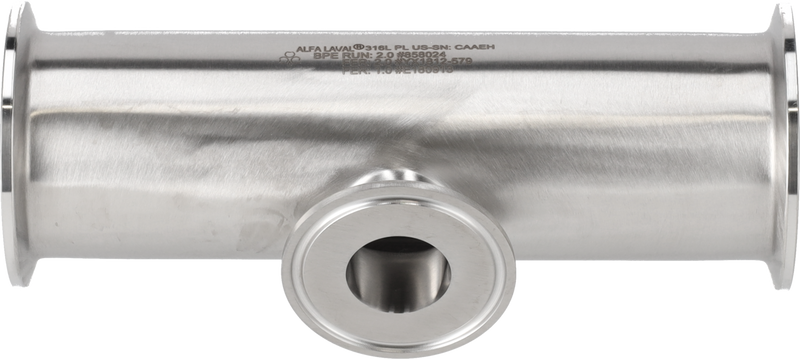

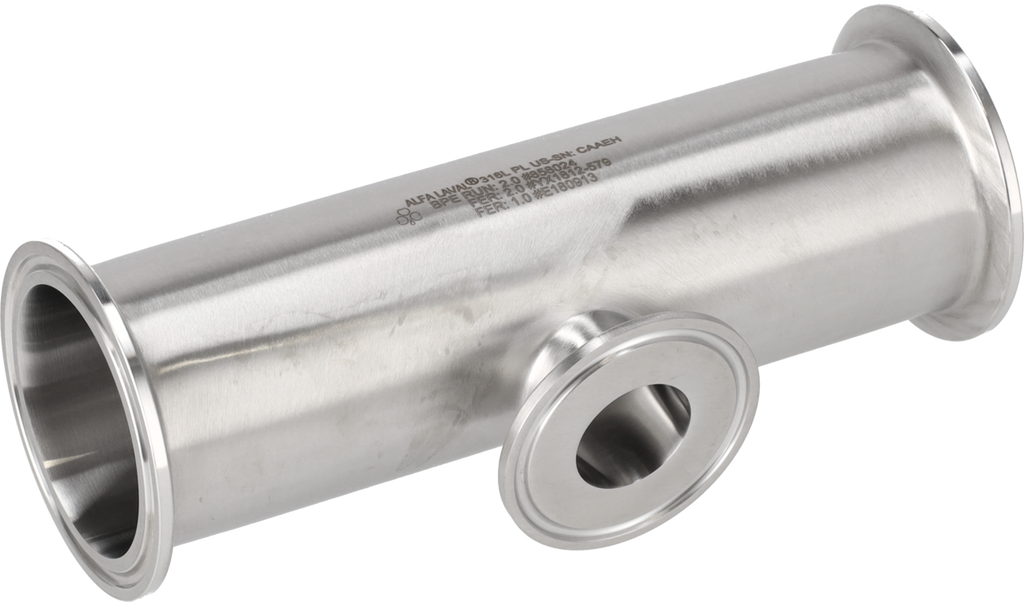

B7RMPS-2 1/2 X 1/2-316L-PL
B7RMPS-2 1/2 X 1/2-316L-PL
B7RMPS-2 1/2 X 1/2-316L-PL
B7RMPS-2 1/2 X 1/2-316L-PL
Roll over image to zoom in Click on image to zoom
B7RMPS-2 1/2 X 1/2-316L-PL
B7RMPS-2 1/2 X 1/2-316L-PL
B7RMPS-2 1/2 X 1/2-316L-PL
B7RMPS-2 1/2 X 1/2-316L-PL

B7RMPS-2 1/2 X 1/2-316L-PL

Manufacturer:Alfa Laval
Item number: 9634003953
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:On request
  • Type: Reducing Tees Short
  • Design: B7RMPS
  • Standard: ASME BPE
  • Material: ASME BPE
  • Size: 2.5
  • Second Size: 0.5
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Clamp ends
  • Item Weight: 0.6
  • Country of origin: United States
Price:
Login to view price

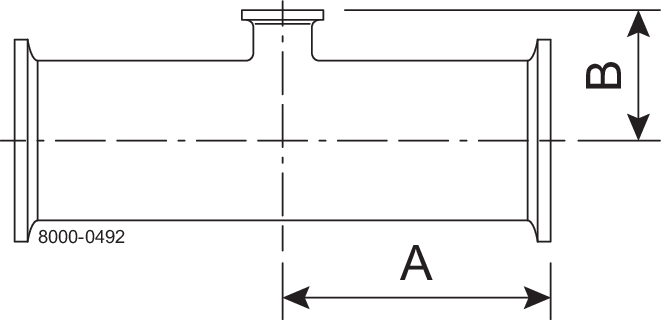

A: 92.1
B: 47.6
OD/ID x t: 63.50/60.20 x 1.65
OD1/ID1 x t1: 63.50/60.20 x 1.65
OD2/ID2 x t2: 12.70/9.40 x 1.65
