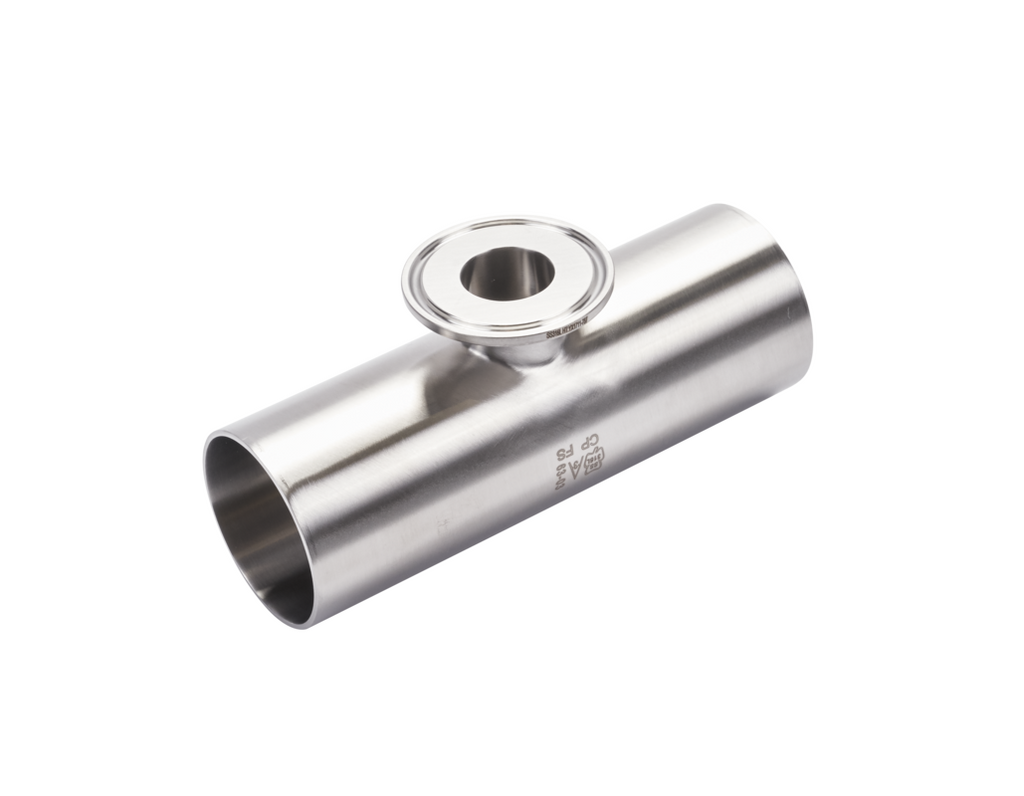

B7RWWMS-1 1/2 X 1-316L-PL
B7RWWMS-1 1/2 X 1-316L-PL
Roll over image to zoom in Click on image to zoom
B7RWWMS-1 1/2 X 1-316L-PL
B7RWWMS-1 1/2 X 1-316L-PL

B7RWWMS-1 1/2 X 1-316L-PL

Manufacturer:Alfa Laval
Item number: 9634002348
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:On request
  • Type: Reducing Tees Short
  • Design: B7RWWMS
  • Standard: ASME BPE
  • Material: ASME BPE
  • Size: 1.5
  • Second Size: 1
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: WxWxSRTC
  • Item Weight: 0.279
  • Country of origin: China
Price:
Login to view price

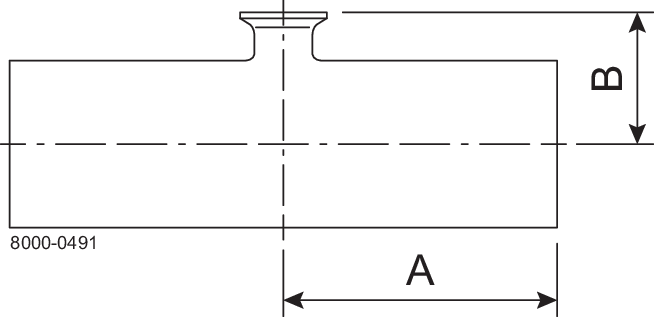

A: 60.3
B: 34.9
OD/ID x t: 38.10/34.80 x 1.65
OD1/ID1 x t1: 38.10/34.80 x 1.65
OD2/ID2 x t2: 25.40/22.10 x 1.65
