B7RWWMS-2 1/2X 3/4-316L-PL
B7RWWMS-2 1/2X 3/4-316L-PL
Roll over image to zoom in Click on image to zoom
B7RWWMS-2 1/2X 3/4-316L-PL
B7RWWMS-2 1/2X 3/4-316L-PL

B7RWWMS-2 1/2X 3/4-316L-PL

Manufacturer:Alfa Laval
Item number: 9634002354
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:On request

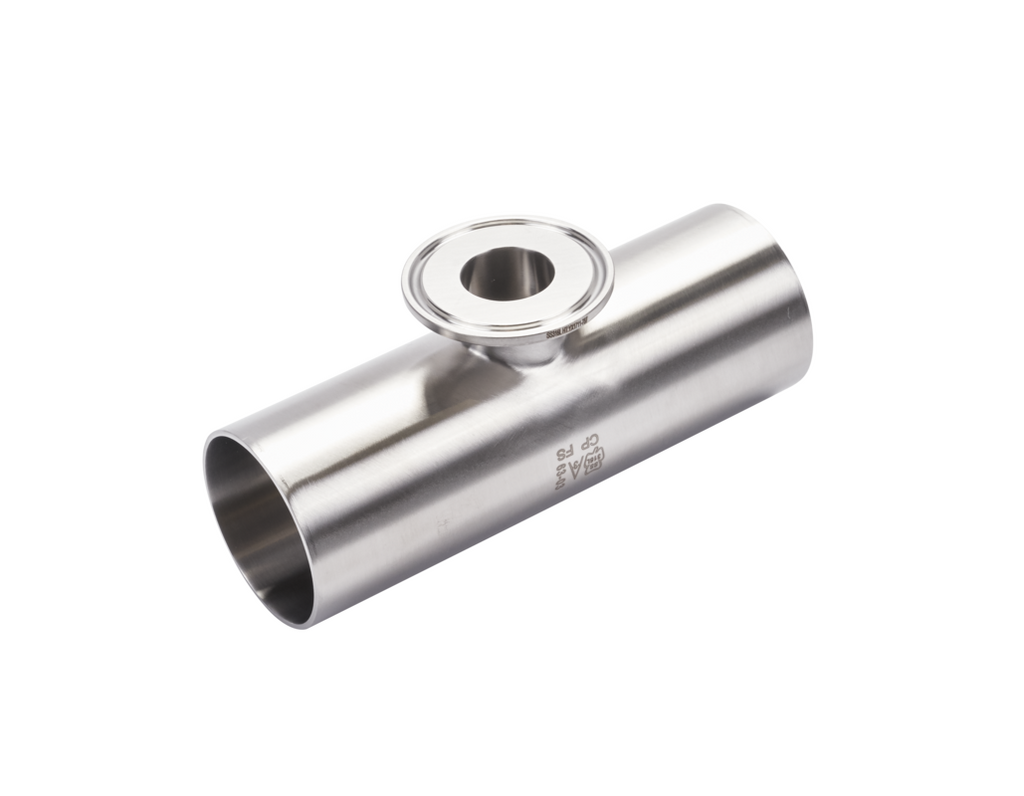

  • Type: Reducing Tees Short
  • Design: B7RWWMS
  • Standard: ASME BPE
  • Material: ASME BPE
  • Size: 2.5
  • Second Size: 0.75
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: WxWxSRTC
  • Item Weight: 1.05
  • Country of origin: China
Price:
Login to view price

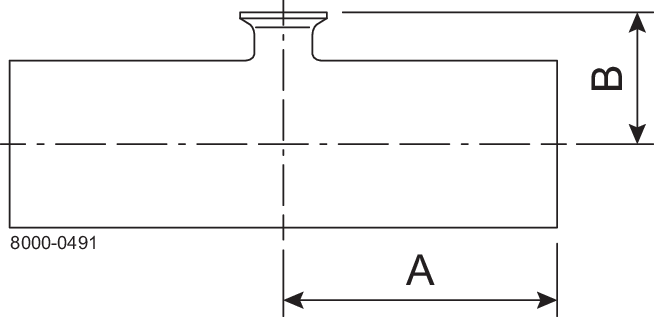

A: 79.4
B: 47.6
OD/ID x t: 63.50/60.20 x 1.65
OD1/ID1 x t1: 63.50/60.20 x 1.65
OD2/ID2 x t2: 19.05/15.75 x 1.65
