B7RWWMS- 3 X 3/4 -316L-PL
B7RWWMS- 3 X 3/4 -316L-PL
Roll over image to zoom in Click on image to zoom
B7RWWMS- 3 X 3/4 -316L-PL
B7RWWMS- 3 X 3/4 -316L-PL

B7RWWMS- 3 X 3/4 -316L-PL

Manufacturer:Alfa Laval
Item number: 9634002359
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:On request

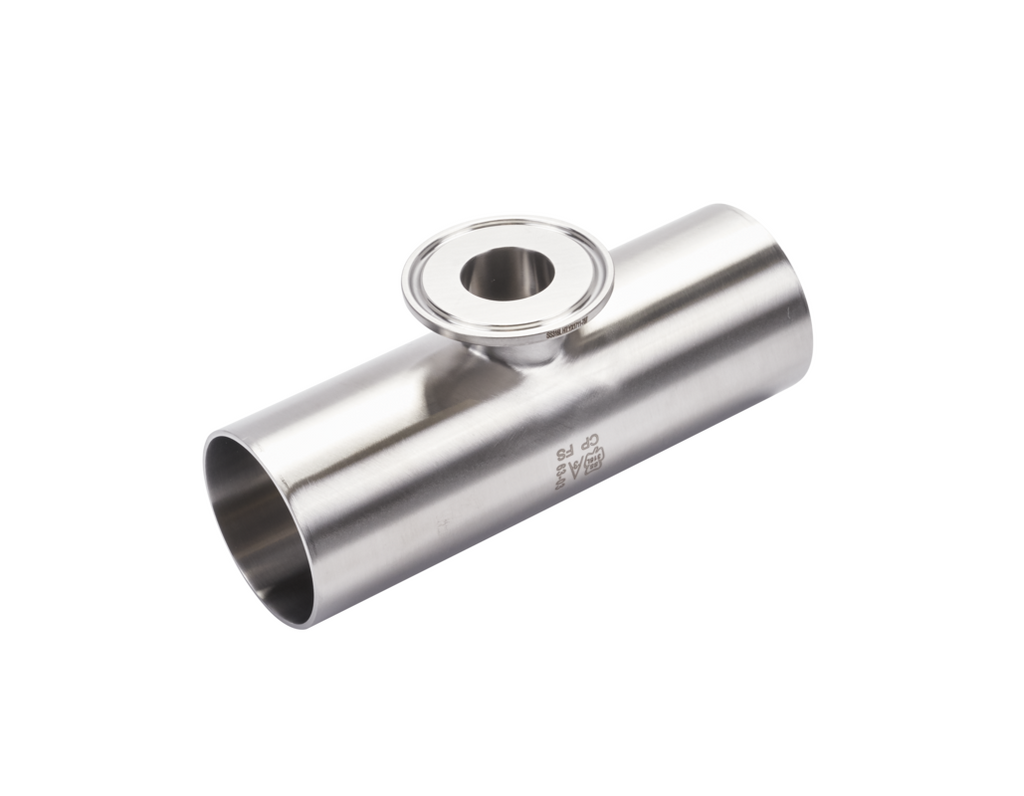

  • Type: Reducing Tees Short
  • Design: B7RWWMS
  • Standard: ASME BPE
  • Material: ASME BPE
  • Size: 3
  • Second Size: 0.75
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: WxWxSRTC
  • Item Weight: 0.62
  • Country of origin: China
Price:
Login to view price

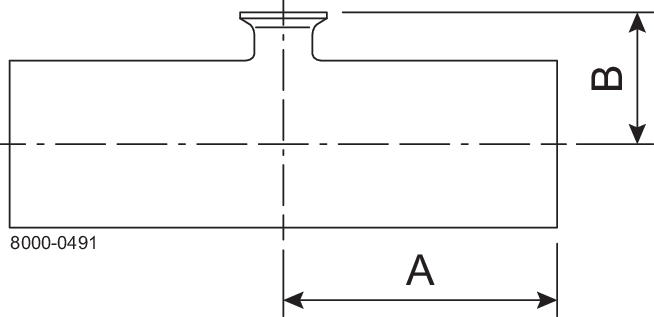

A: 85.7
B: 54
OD/ID x t: 76.20/72.90 x 1.65
OD1/ID1 x t1: 76.20/72.90 x 1.65
OD2/ID2 x t2: 19.05/15.75 x 1.65
