B7RWWW-2 1/2 X 3/4-316L-PL
Roll over image to zoom in Click on image to zoom
B7RWWW-2 1/2 X 3/4-316L-PL

B7RWWW-2 1/2 X 3/4-316L-PL

Manufacturer:Alfa Laval
Item number: 9634001054
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
  • Type: Reducing Tees
  • Design: B7RWWW
  • Standard: ASME BPE
  • Material: ASME BPE
  • Size: 2.5
  • Second Size: 0.75
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Weld ends
  • Country of origin: China
Price:
Login to view price

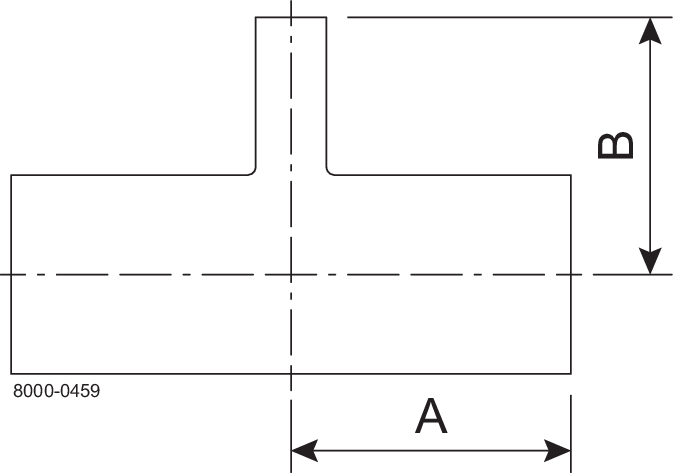

A: 79.4
B: 73
OD/ID x t: 63.50/60.20 x 1.65
OD1/ID1 x t1: 63.50/60.20 x 1.65
OD2/ID2 x t2: 19.05/15.75 x 1.65
