B7RWWW-3/4 X 1/2-316L-PL .
Roll over image to zoom in Click on image to zoom
B7RWWW-3/4 X 1/2-316L-PL .

B7RWWW-3/4 X 1/2-316L-PL .

Manufacturer:Alfa Laval
Item number: 9634001043
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
  • Type: Reducing Tees
  • Design: B7RWWW
  • Standard: ASME BPE
  • Material: ASME BPE
  • Size: 0.75
  • Second Size: 0.5
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Weld ends
  • Country of origin: Thailand
Price:
Login to view price

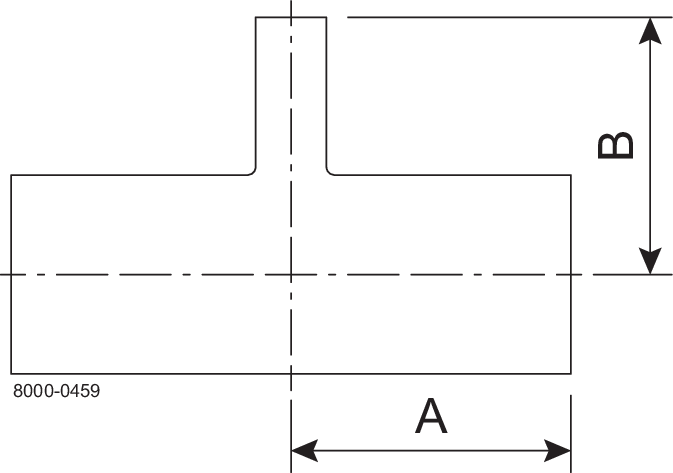

A: 50.8
B: 50.8
OD/ID x t: 19.05/15.75 x 1.65
OD1/ID1 x t1: 19.05/15.75 x 1.65
OD2/ID2 x t2: 12.70/9.40 x 1.65
