B7RWWW-4 X 2-316L-PL ....
Roll over image to zoom in Click on image to zoom
B7RWWW-4 X 2-316L-PL ....

B7RWWW-4 X 2-316L-PL ....

Manufacturer:Alfa Laval
Item number: 9634001121
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
  • Type: Reducing Tees
  • Design: B7RWWW
  • Standard: ASME BPE
  • Material: ASME BPE
  • Size: 4
  • Second Size: 2
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Weld ends
  • Country of origin: Thailand
Price:
Login to view price

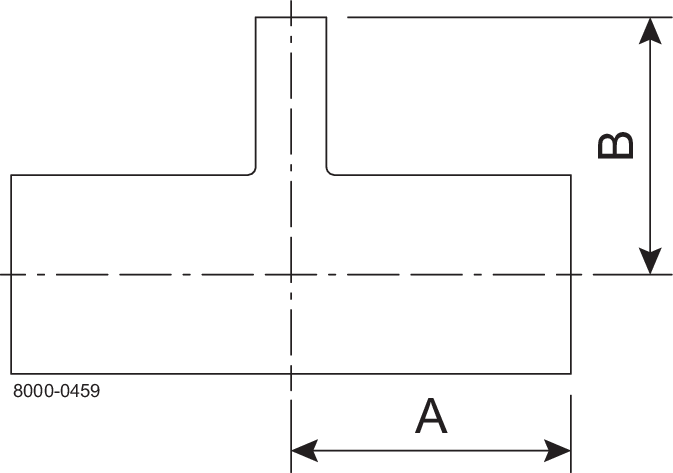

A: 104.8
B: 98.4
OD/ID x t: 101.60/97.38 x 2.11
OD1/ID1 x t1: 101.60/97.38 x 2.11
OD2/ID2 x t2: 50.80/47.50 x 1.65
