B7RWWW-6 X 2 1/2-316L-PL
Roll over image to zoom in Click on image to zoom
B7RWWW-6 X 2 1/2-316L-PL

B7RWWW-6 X 2 1/2-316L-PL

Manufacturer:Alfa Laval
Item number: 9635000170
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
  • Type: Reducing Tees
  • Design: B7RWWW
  • Standard: ASME BPE
  • Material: ASME BPE
  • Size: 6
  • Second Size: 2.5
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Weld ends
  • Country of origin: United States
Price:
Login to view price

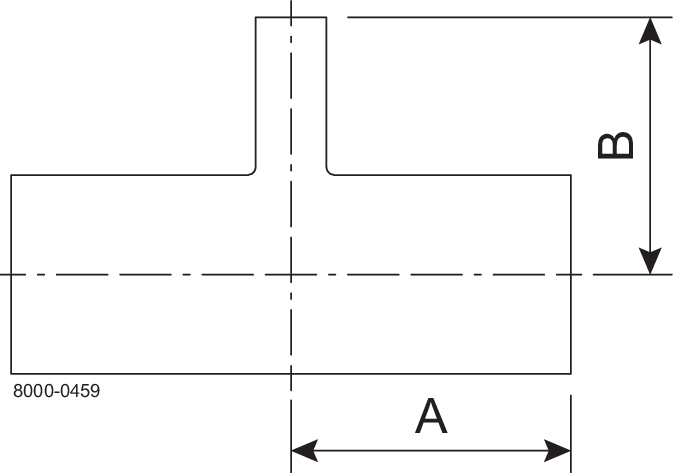

A: 142.9
B: 130.2
OD/ID x t: 152.40/146.86 x 2.77
OD1/ID1 x t1: 152.40/146.86 x 2.77
OD2/ID2 x t2: 63.50/60.20 x 1.65
