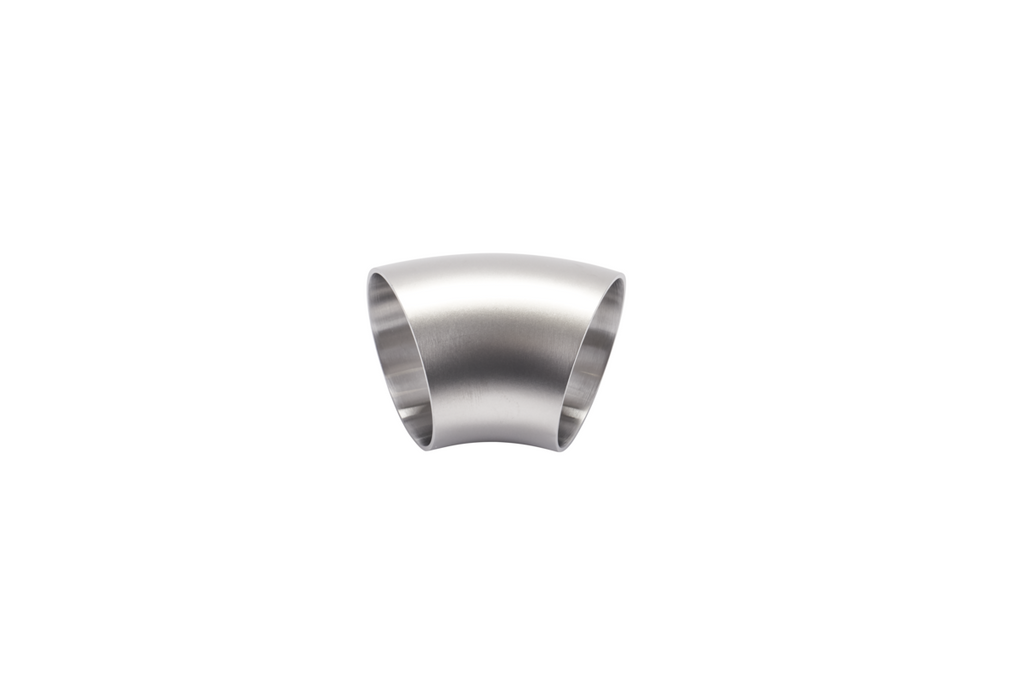

BEND 45 BS DN200 HSF2 1.4307
BEND 45 BS DN200 HSF2 1.4307
Roll over image to zoom in Click on image to zoom
BEND 45 BS DN200 HSF2 1.4307
BEND 45 BS DN200 HSF2 1.4307

BEND 45 BS DN200 HSF2 1.4307

Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Product code:
5007
HS Code:
73072310
Item number:
9615227357
Delivery time:
On request
  • Type: Bends 45
  • Design: BS
  • Standard: DIN 11852 EN 10374-A
  • Material: DIN 11852 EN 10374-A
  • Size: DN200
  • Finish: HSF2 (ID=0.8/OD=1.6)
  • Connection Type: Weld ends
  • Item Weight: 2.45
  • Country of origin: China
Price:
Login to view price

Documentation

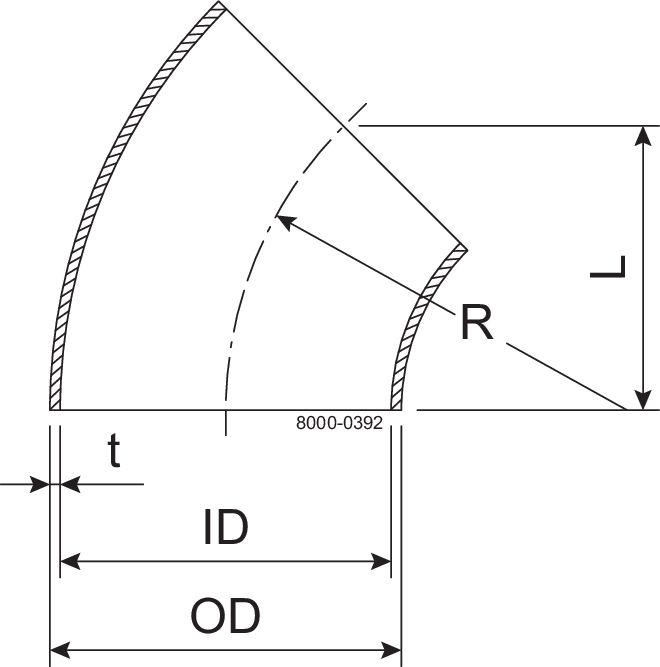

L: 212.13
R (mm): 300
OD/ID x t: 204.00/200.00 x 2.00
OD1/ID1 x t1: 204.00/200.00 x 2.00
