BEND 45 BS DN200 HSF3 1.4404
BEND 45 BS DN200 HSF3 1.4404
Roll over image to zoom in Click on image to zoom
BEND 45 BS DN200 HSF3 1.4404
BEND 45 BS DN200 HSF3 1.4404

BEND 45 BS DN200 HSF3 1.4404

Manufacturer:Alfa Laval
Item number: 9615227360
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:On request
  • Type: Bends 45
  • Design: BS
  • Standard: DIN 11852 EN 10374-A
  • Material: DIN 11852 EN 10374-A
  • Size: DN200
  • Finish: HSF3 (ID=0.8/OD=0.8)
  • Connection Type: Weld ends
  • Item Weight: 1.921
  • Country of origin: China
Price:
Login to view price

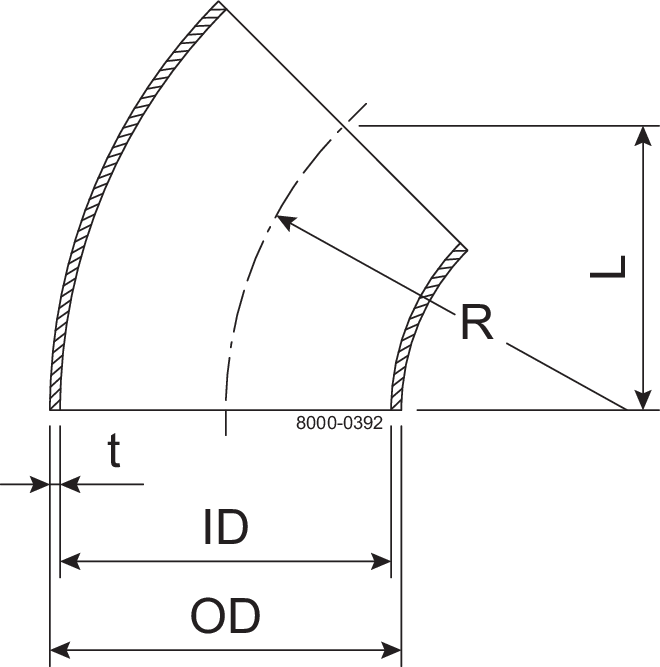

L: 212.13
R (mm): 300
OD/ID x t: 204.00/200.00 x 2.00
OD1/ID1 x t1: 204.00/200.00 x 2.00
