Manufacturer:Alfa Laval
Item number: 9612150559
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:On request
  • Type: Bends 90
  • Design: BS
  • Standard: DIN 11852 EN 10374-A
  • Material: DIN 11852 EN 10374-A
  • Size: DN15
  • Finish: HSF3 (ID=0.8/OD=0.8)
  • Connection Type: Weld ends
  • Item Weight: 0.033
  • Country of origin: China
Price:
Login to view price

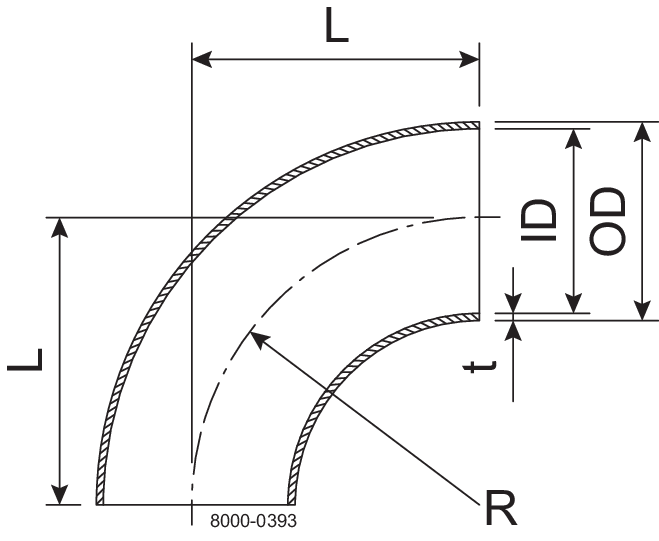

L: 35
R (mm): 35
OD/ID x t: 19.00/16.00 x 1.50
OD1/ID1 x t1: 19.00/16.00 x 1.50
