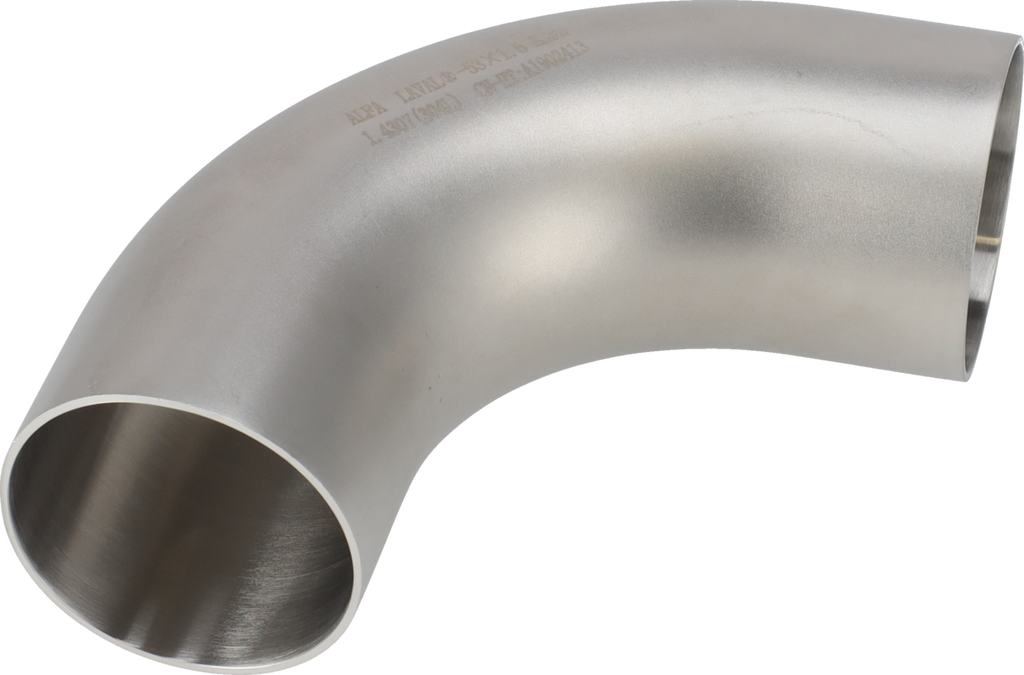

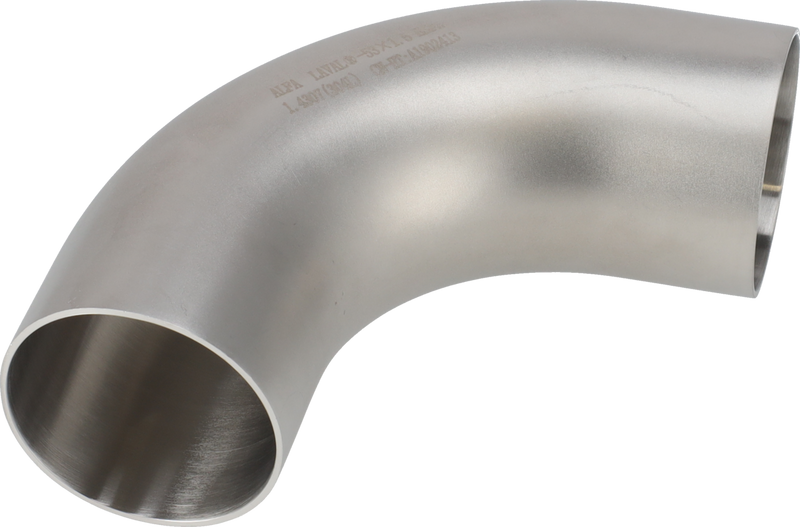

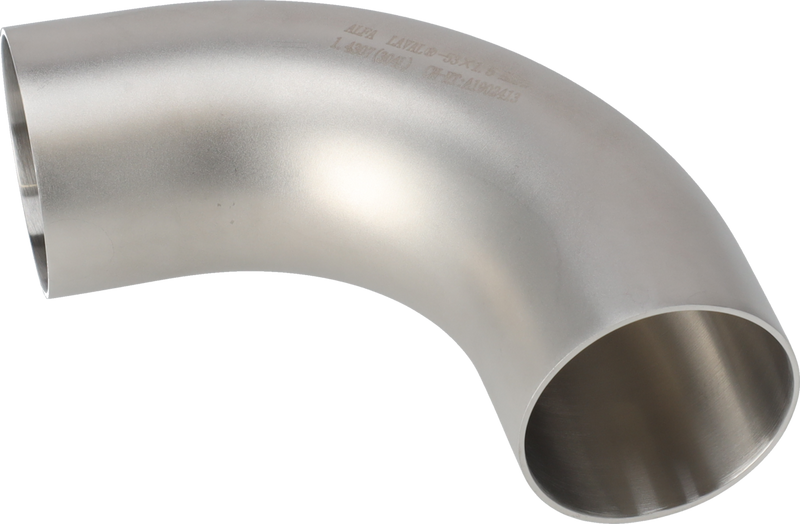

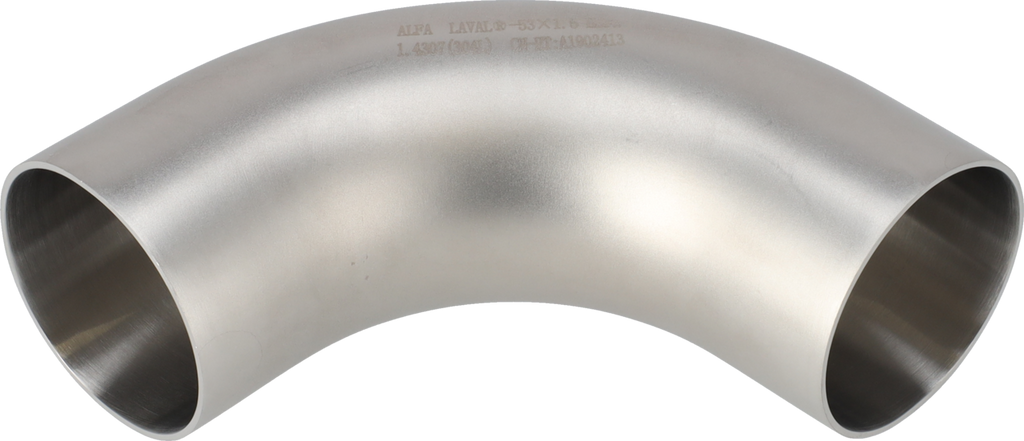

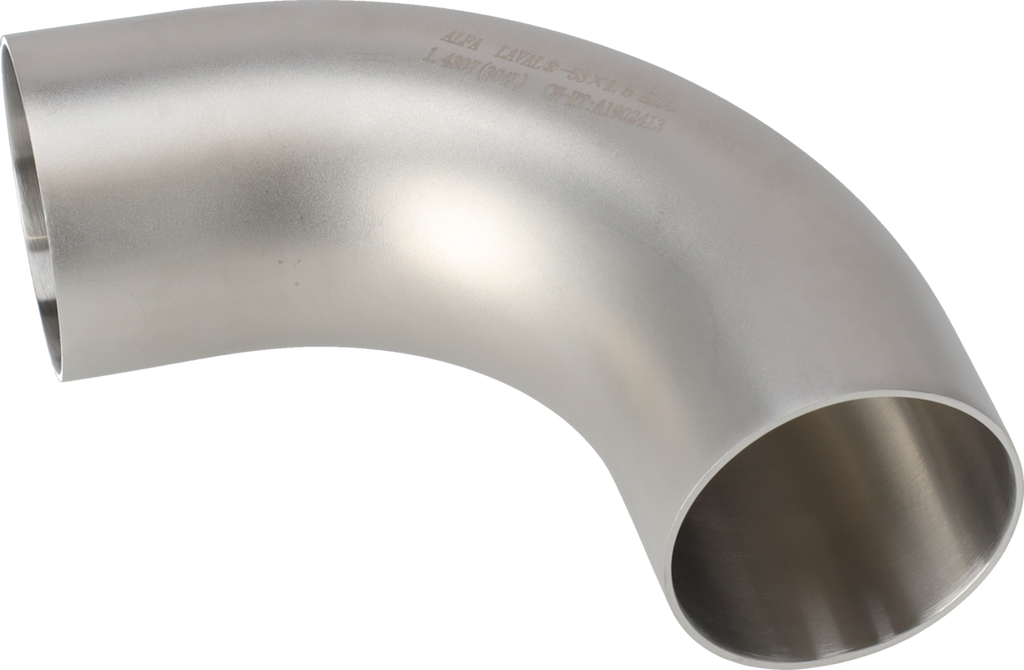

BEND 90 DN10 HSF2 1.4307
BEND 90 DN10 HSF2 1.4307
BEND 90 DN10 HSF2 1.4307
BEND 90 DN10 HSF2 1.4307
Roll over image to zoom in Click on image to zoom
BEND 90 DN10 HSF2 1.4307
BEND 90 DN10 HSF2 1.4307
BEND 90 DN10 HSF2 1.4307
BEND 90 DN10 HSF2 1.4307

BEND 90 DN10 HSF2 1.4307

Manufacturer:Alfa Laval
Item number: 9615220009
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:On request
  • Type: Bends 90
  • Design: Standard
  • Standard: Fit to EN10357-A
  • Material: Fit to EN10357-A
  • Size: DN10
  • Finish: HSF2 (ID=0.8/OD=1.6)
  • Connection Type: Weld ends
  • Item Weight: 0.026
  • Country of origin: China
Price:
Login to view price

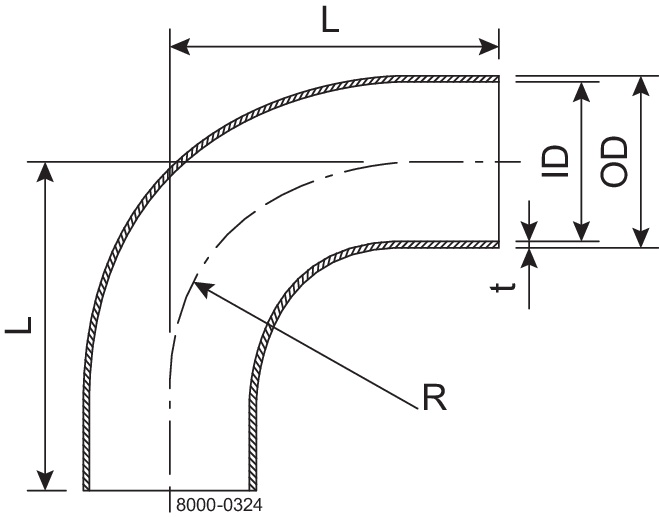

L: 38
R (mm): 26
OD/ID x t: 13.00/10.00 x 1.50
OD1/ID1 x t1: 13.00/10.00 x 1.50
