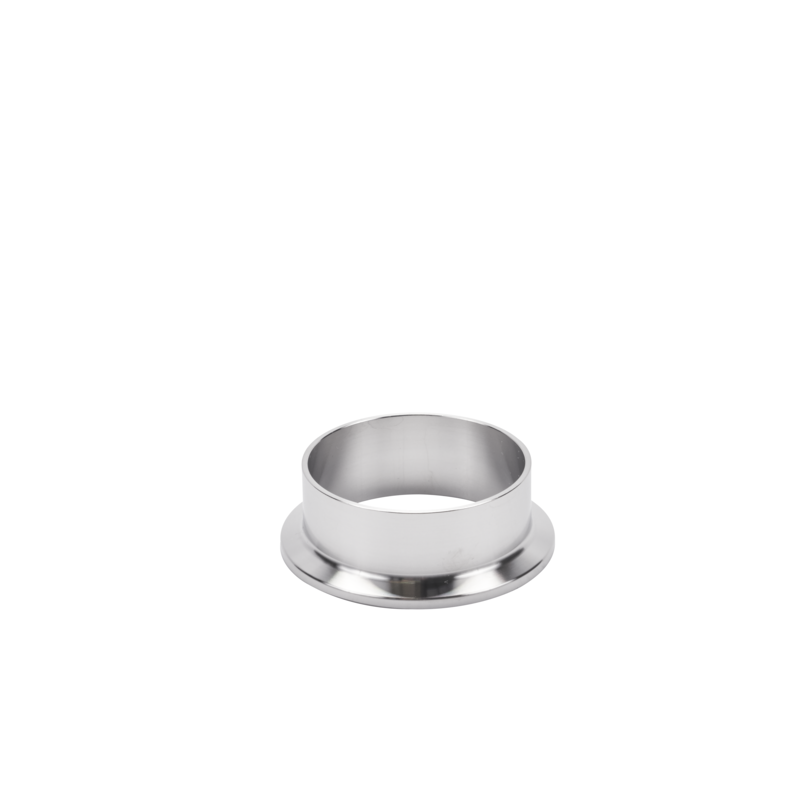

FERRULE KK DN10 HSF0 1.4307
FERRULE KK DN10 HSF0 1.4307
Roll over image to zoom in Click on image to zoom
FERRULE KK DN10 HSF0 1.4307
FERRULE KK DN10 HSF0 1.4307

FERRULE KK DN10 HSF0 1.4307

Manufacturer:Alfa Laval
Item number: 9612156101
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:On request
  • Type: Ferrule
  • Design: KK short
  • Standard: DIN 32676
  • Material: DIN 32676
  • Size: DN10
  • Finish: HSF0 (ID=0.8/OD=1.6)
  • Connection Type: TCxW
  • Item Weight: 0.031
  • Country of origin: China
Price:
Login to view price

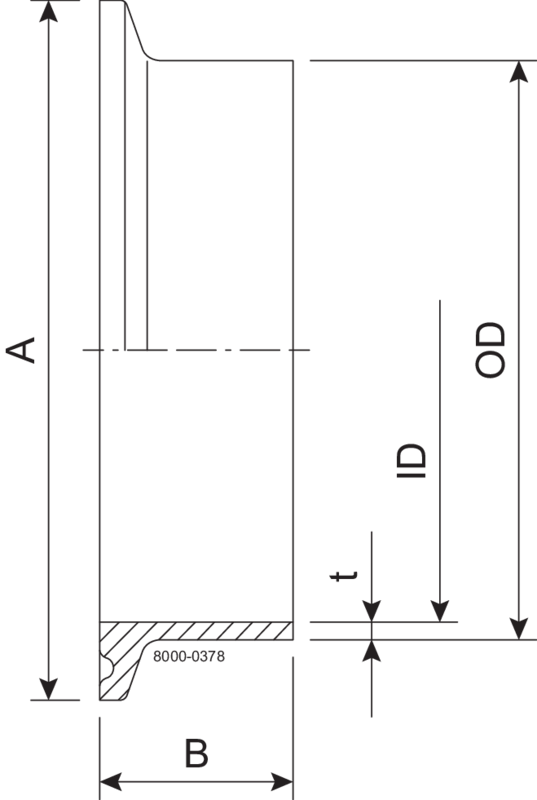

A: 34
B: 18
OD/ID x t: 13.00/10.00 x 1.50
OD1/ID1 x t1: 13.00/10.00 x 1.50
