FLANGE NF DN10 H3 1.4404
FLANGE NF DN10 H3 1.4404
Roll over image to zoom in Click on image to zoom
FLANGE NF DN10 H3 1.4404
FLANGE NF DN10 H3 1.4404

FLANGE NF DN10 H3 1.4404

Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Product code:
5060
HS Code:
73072100
Item number:
9613403921
Delivery time:
On request

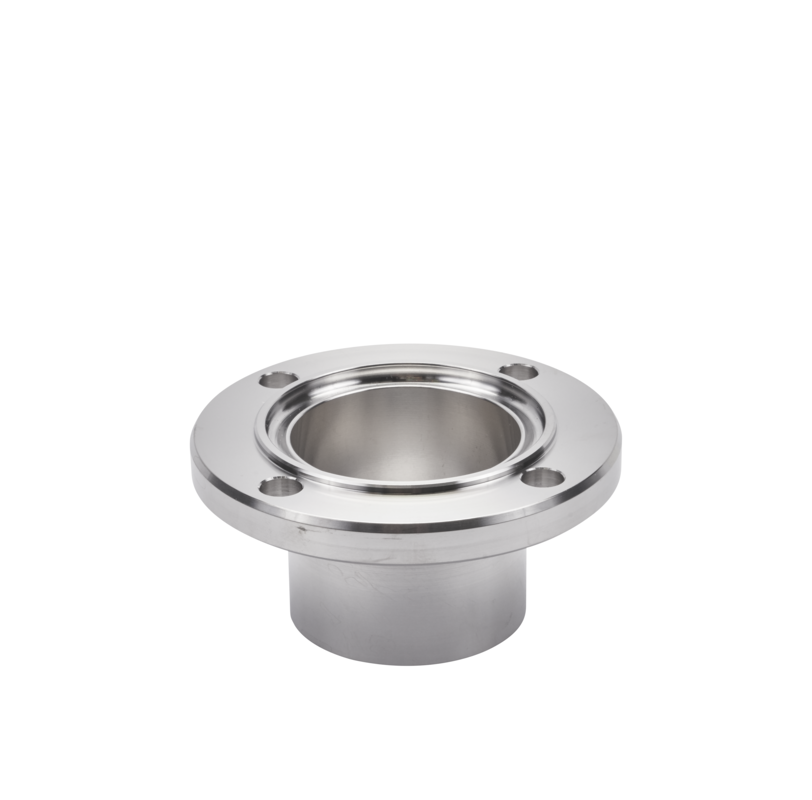

  • Type: Flange
  • Design: NF groove
  • Standard: DIN 11864-2
  • Material: DIN 11864-2
  • Size: DN10
  • Finish: H3 (ID=0.8/OD=1.0)
  • Connection Type: Weld ends
  • Item Weight: 0.16
  • Country of origin: China
Price:
Login to view price

Documentation

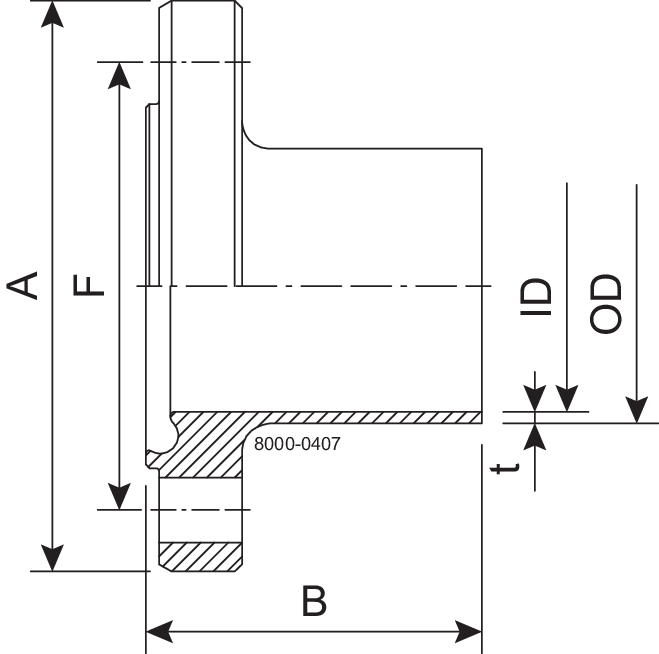

A: 54
B: 41.5
F: 37
OD/ID x t: 13.00/10.00 x 1.50
