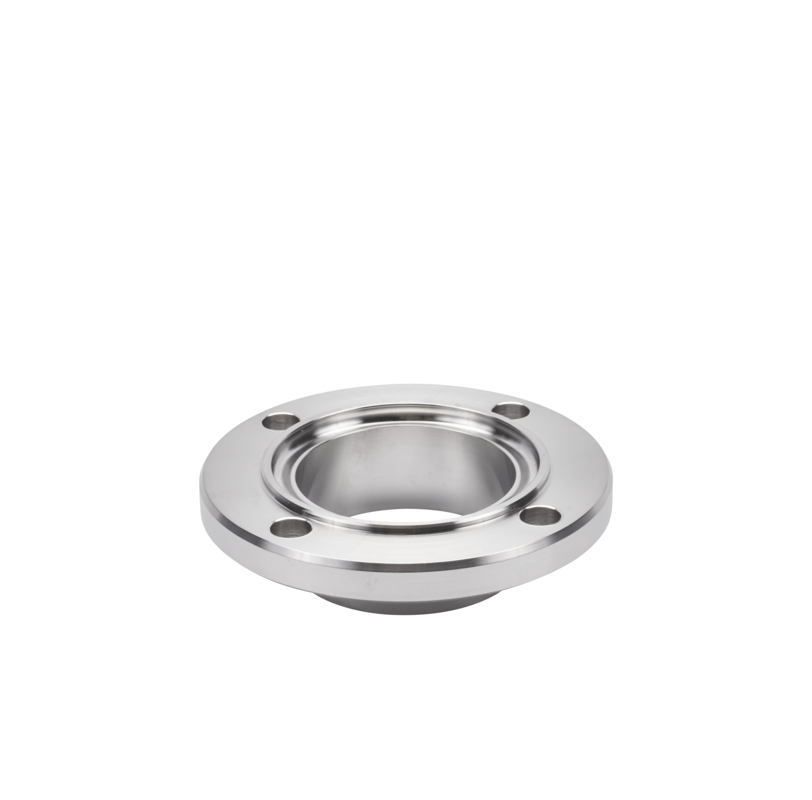

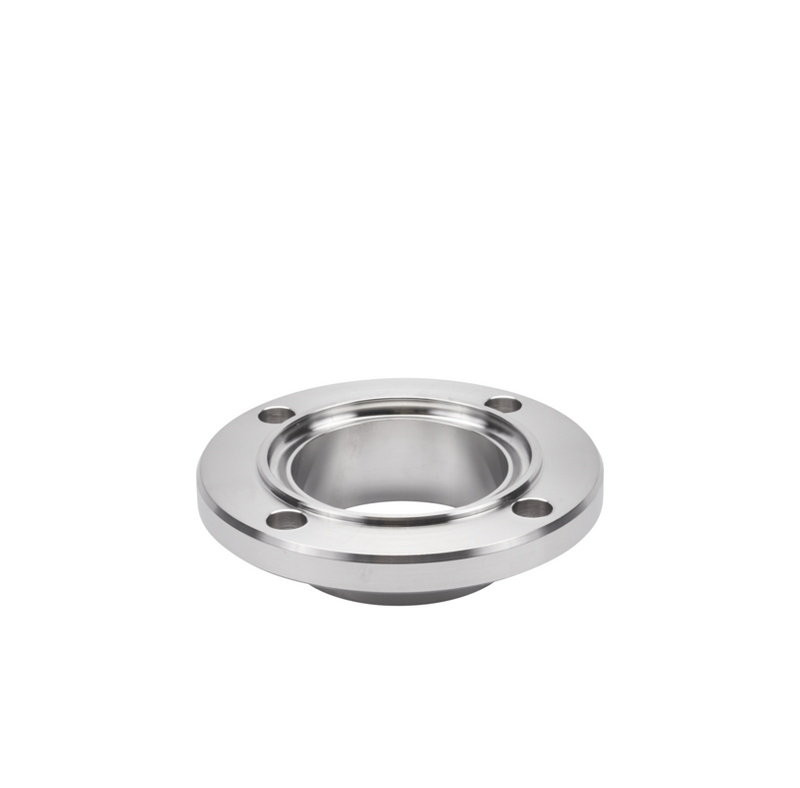

FLANGE NF DN65 H3 1.4307
FLANGE NF DN65 H3 1.4307
Roll over image to zoom in Click on image to zoom
FLANGE NF DN65 H3 1.4307
FLANGE NF DN65 H3 1.4307

FLANGE NF DN65 H3 1.4307

Manufacturer:Alfa Laval
Item number: 8010000392
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:On request
  • Type: Flange
  • Design: NF groove
  • Standard: DIN 11853-2
  • Material: DIN 11853-2
  • Size: DN65
  • Finish: H3 (ID=0.8/OD=1.0)
  • Connection Type: Weld ends
  • Item Weight: 0.608
  • Country of origin: China
Price:
Login to view price

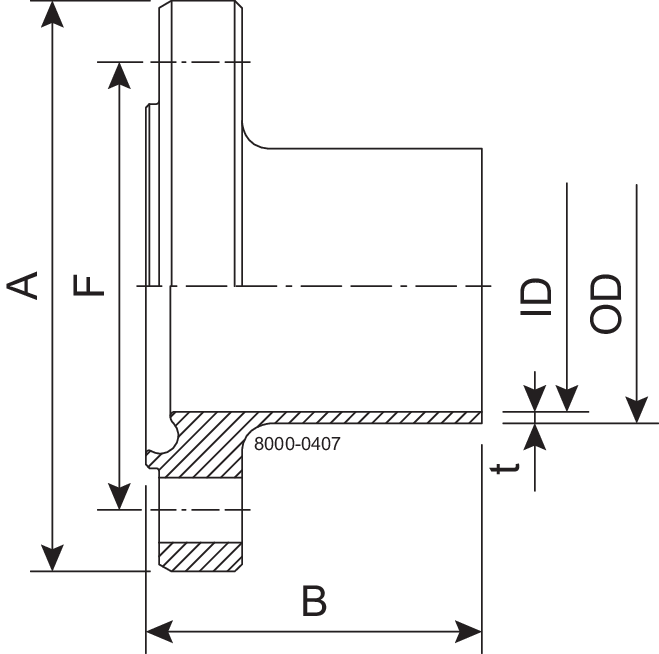

A: 113
B: 25.5
F: 95
OD/ID x t: 70.00/66.00 x 2.00
