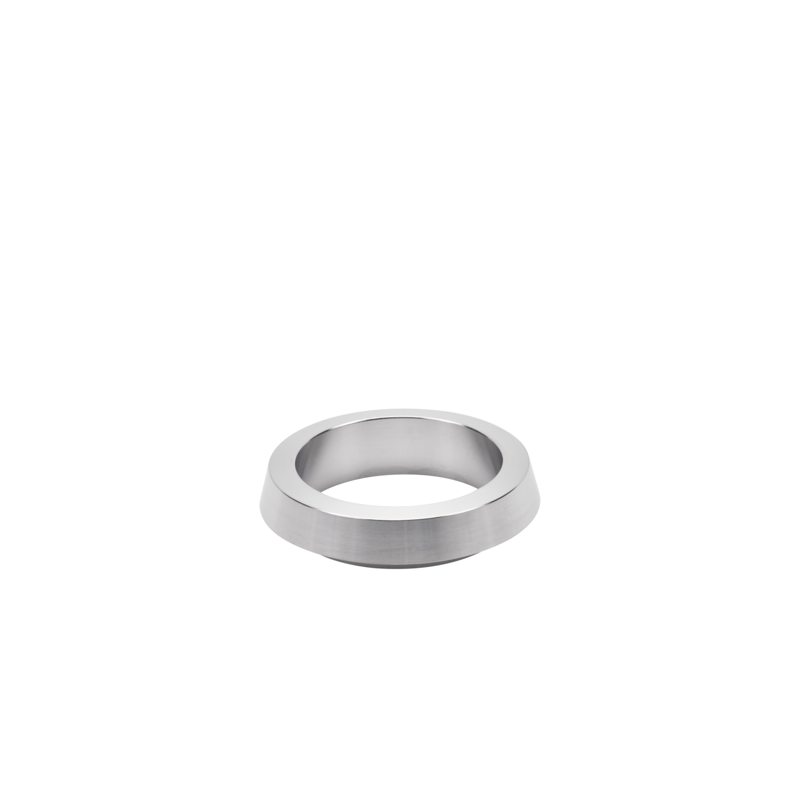

LINER SKD DN100 HSF0 1.4404

LINER SKD DN100 HSF0 1.4404 - DIN 11851
Manufacturer:
Alfa Laval
In stock:
64 (local stock)
Product code:
5044
HS Code:
73072980
Item number:
9611331102
Delivery time:
7 days
  • Range: Connections
  • Product Model: DIN EN 10357-A Threaded Unions DIN 11851 SK
  • Size: DN100
  • Material: 1.4404 (316L)
  • Finish: HSF0 (ID=0.8/OD=1.6)
  • Connection Type: Weld ends
  • Standard: DIN 11851
  • Design: SKD short
  • Item Weight: 0.38
  • Country of origin: China
Price:
Login to view price

Documentation

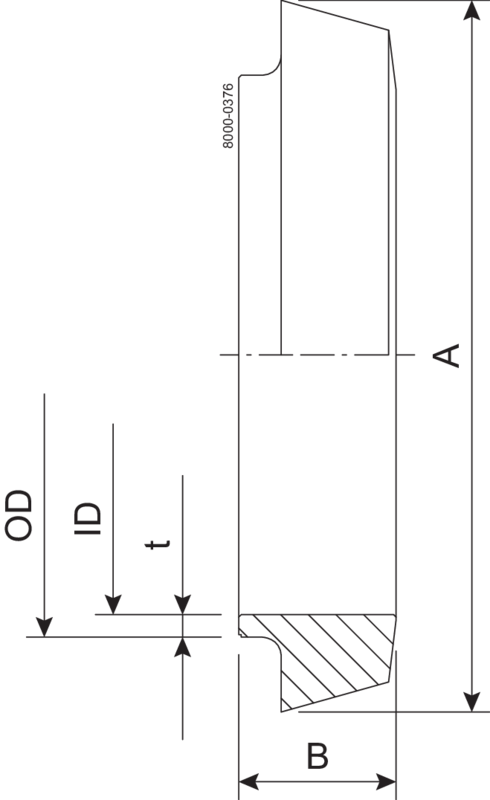

A: 121.00
B: 20.00
OD/ID x t: 104.00/100.00 x 2.00
