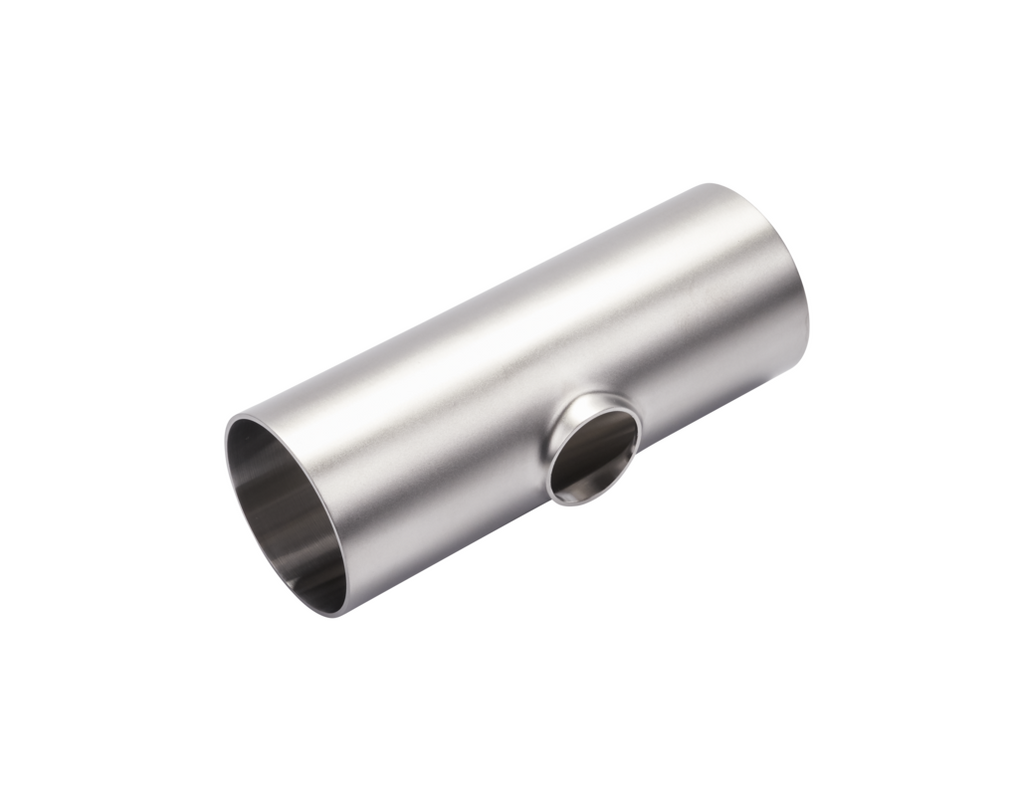

TEE RTK DN125/65 HSF2 1.4404
TEE RTK DN125/65 HSF2 1.4404
Roll over image to zoom in Click on image to zoom
TEE RTK DN125/65 HSF2 1.4404
TEE RTK DN125/65 HSF2 1.4404

TEE RTK DN125/65 HSF2 1.4404

Manufacturer:Alfa Laval
Item number: 9615227953
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:On request
  • Type: Tee
  • Design: Reduced Tee Short and RTK
  • Standard: DIN 11852 EN 10374-A
  • Material: DIN 11852 EN 10374-A
  • Size: DN125
  • Second Size: DN65
  • Finish: HSF2 (ID=0.8/OD=1.6)
  • Connection Type: Weld ends
  • Item Weight: 0.1
  • Country of origin: China
Price:
Login to view price

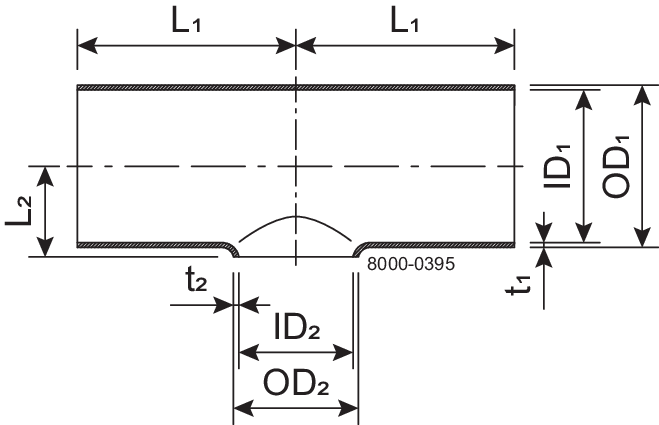

L1 (mm): 187.5
L2 (mm): 69.5
OD/ID x t: 129.00/125.00 x 2.00
OD1/ID1 x t1: 129.00/125.00 x 2.00
OD2/ID2 x t2: 70.00/66.00 x 2.00
