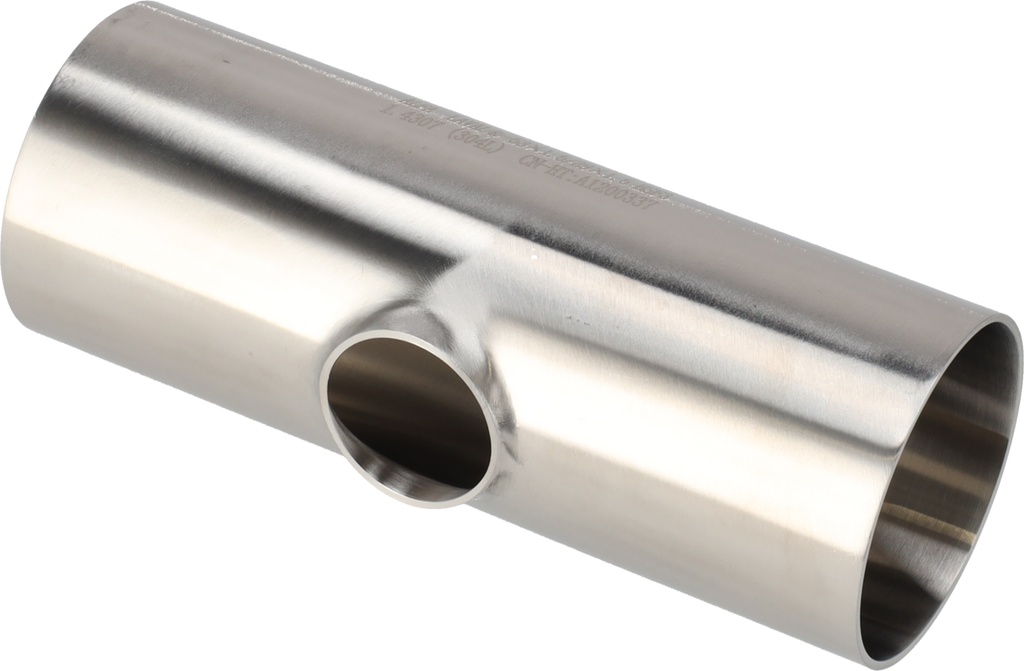

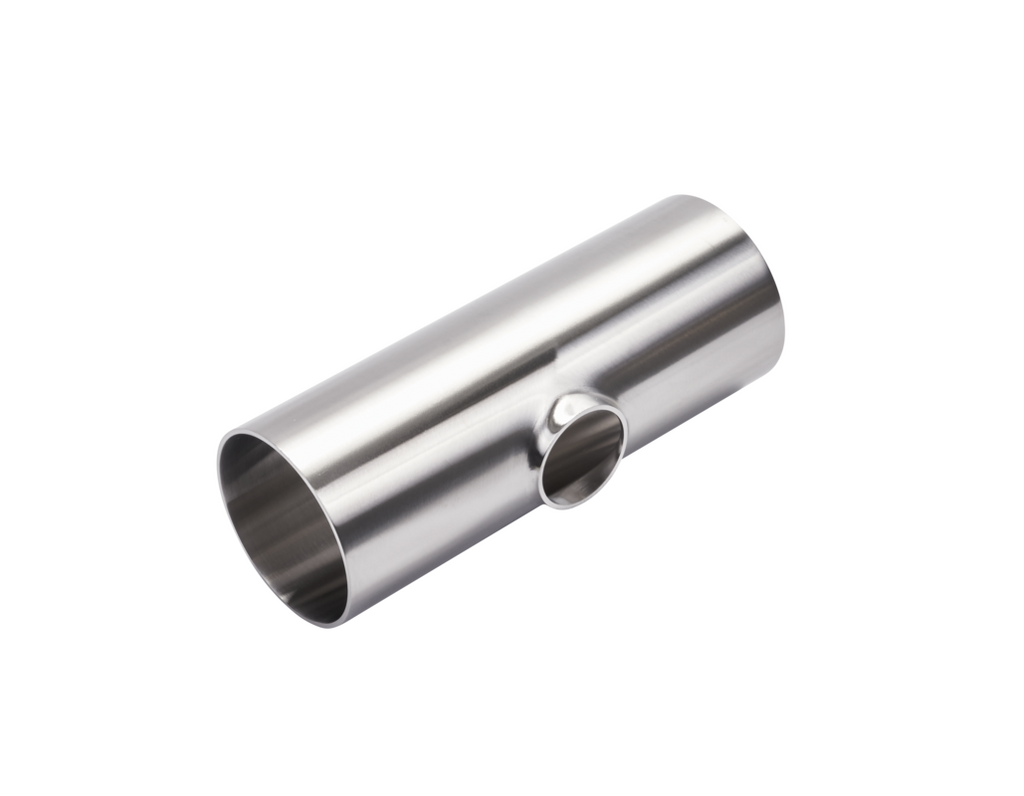

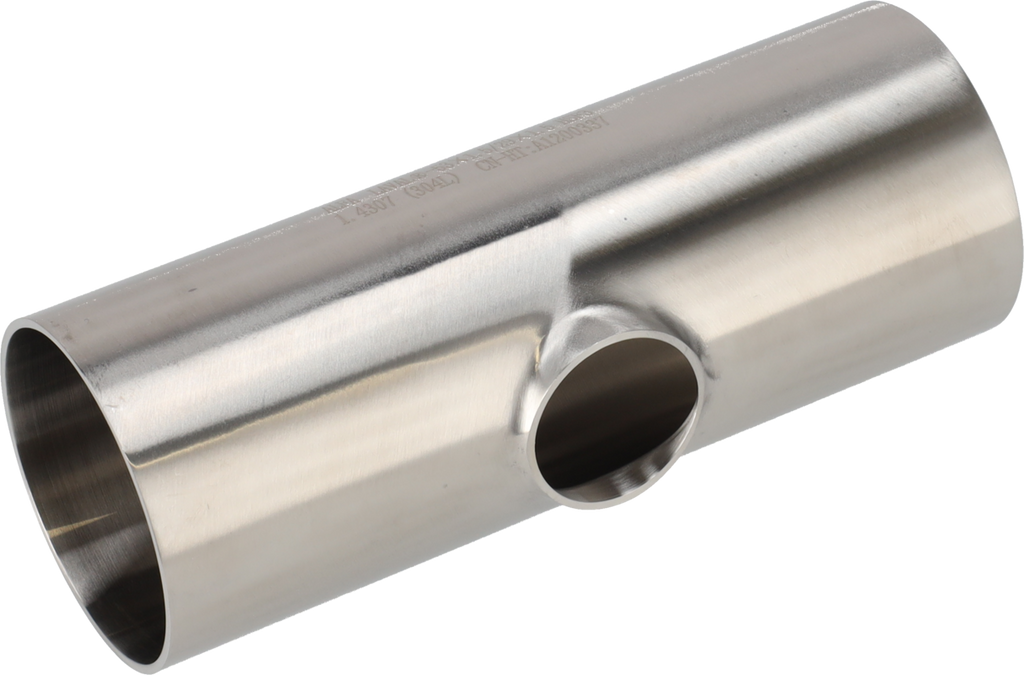

TEE RTK DN150/100 HSF3 1.4404
TEE RTK DN150/100 HSF3 1.4404
TEE RTK DN150/100 HSF3 1.4404
TEE RTK DN150/100 HSF3 1.4404
Roll over image to zoom in Click on image to zoom
TEE RTK DN150/100 HSF3 1.4404
TEE RTK DN150/100 HSF3 1.4404
TEE RTK DN150/100 HSF3 1.4404
TEE RTK DN150/100 HSF3 1.4404

TEE RTK DN150/100 HSF3 1.4404

Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Product code:
5026
HS Code:
73072390
Item number:
9615247259
Delivery time:
On request
  • Type: Tee
  • Design: Reduced Tee Short and RTK
  • Standard: DIN 11852 EN 10374-A
  • Material: DIN 11852 EN 10374-A
  • Size: DN150
  • Second Size: DN100
  • Finish: HSF3 (ID=0.8/OD=0.8)
  • Connection Type: Weld ends
  • Item Weight: 0.1
  • Country of origin: China
Price:
Login to view price

Documentation

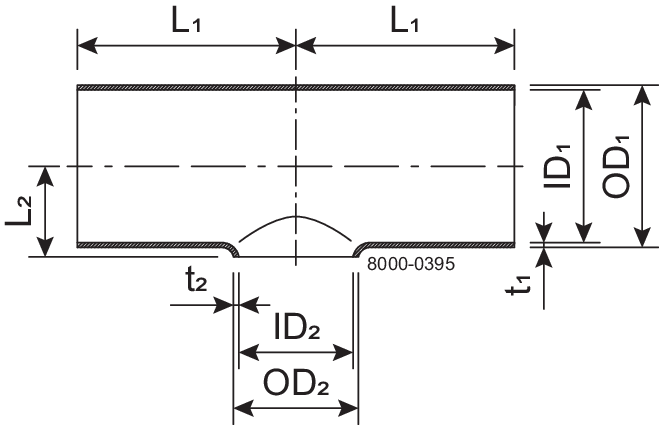

L1 (mm): 225
L2 (mm): 83
OD/ID x t: 154.00/150.00 x 2.00
OD1/ID1 x t1: 154.00/150.00 x 2.00
OD2/ID2 x t2: 104.00/100.00 x 2.00
