TEE RTS DN80/65 HSF3 1.4404
TEE RTS DN80/65 HSF3 1.4404
Roll over image to zoom in Click on image to zoom
TEE RTS DN80/65 HSF3 1.4404
TEE RTS DN80/65 HSF3 1.4404

TEE RTS DN80/65 HSF3 1.4404

Manufacturer:Alfa Laval
Item number: 9615247145
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time

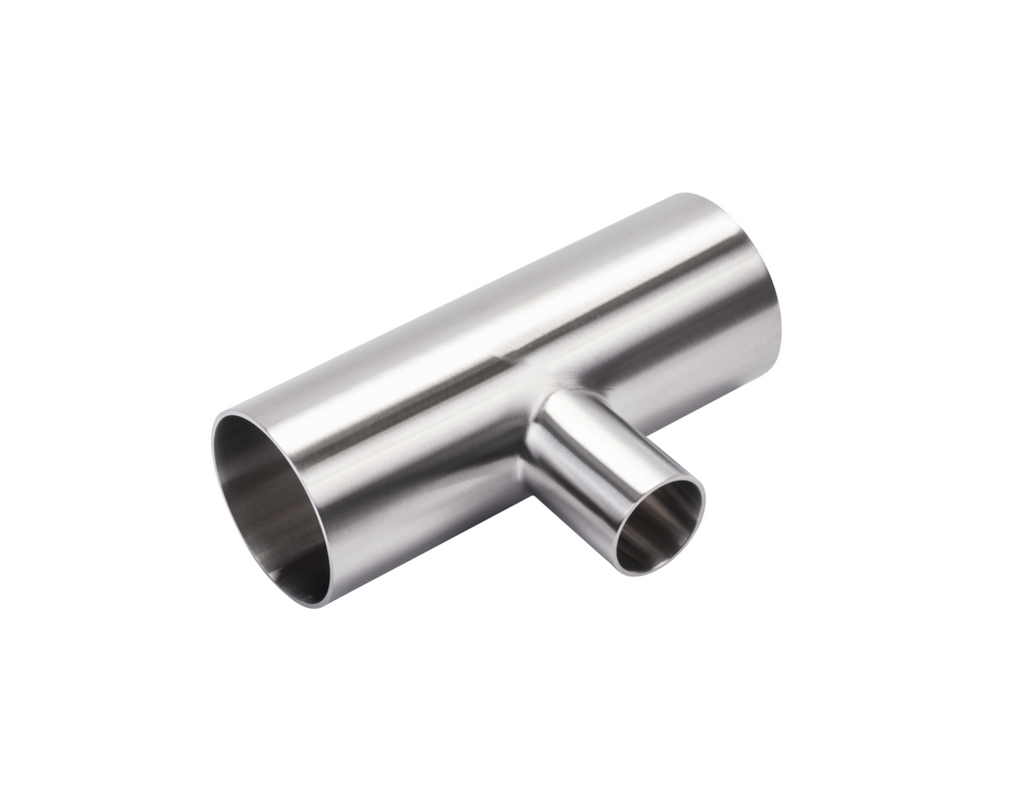

  • Type: Tee
  • Design: Reduced Tee Long and RTS
  • Standard: DIN 11852 EN 10374-A
  • Material: DIN 11852 EN 10374-A
  • Size: DN80
  • Second Size: DN65
  • Finish: HSF3 (ID=0.8/OD=0.8)
  • Connection Type: Weld ends
  • Country of origin: China
Price:
Login to view price

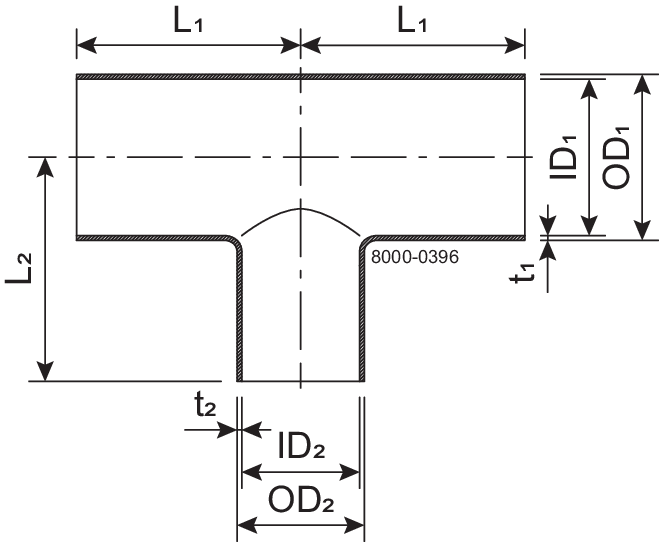

L1 (mm): 90
L2 (mm): 87.5
OD/ID x t: 85.00/81.00 x 2.00
OD1/ID1 x t1: 85.00/81.00 x 2.00
OD2/ID2 x t2: 70.00/66.00 x 2.00
